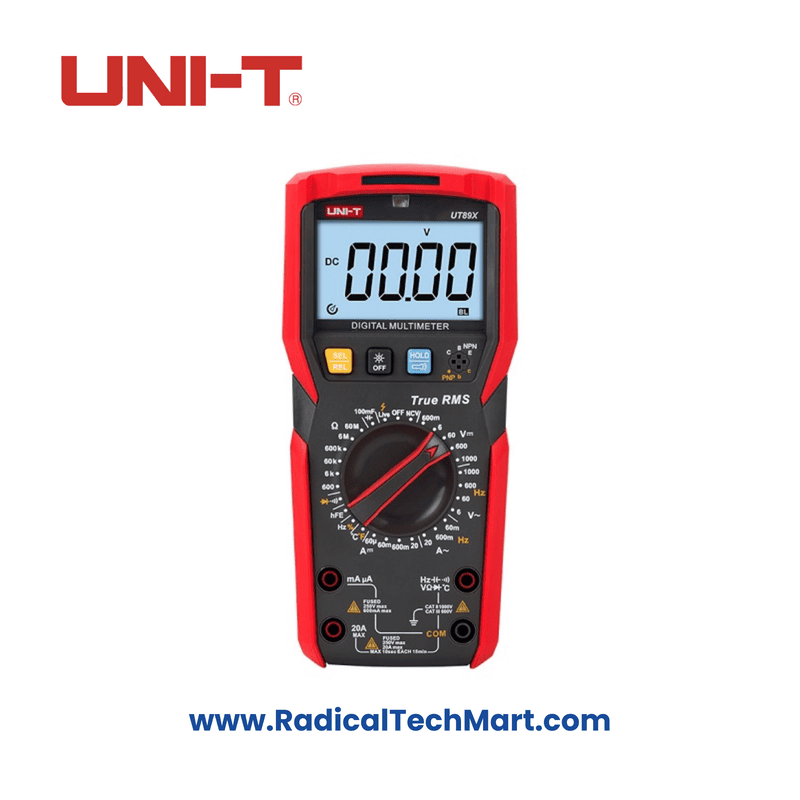

UNI-T UT89X Digital Multimeter

The UT89X is a reliable hand-held digital multimeter with a 3 5/6 bit display and true RMS sine wave measurement capability. It is designed to measure up to 1000V DC/AC voltage, 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity, and non-contact voltage (NCV), which can quickly distinguish between neutral and live wires. The multimeter also features temperature measurement and a test lead for detecting neutral and live wires. The device is built with a durable bi-color case and modern exterior, offering a wide range of functions for professional and everyday use.

Key features of the UT89X include:

• Maximum voltage measurement of 1000V AC/DC and current measurement up to 20A AC/DC.
• True RMS with a 6000 count display for accurate readings.
• Dual range NCV (non-contact voltage) test, which helps quickly identify neutral and live wires through varying light intensity.
• Audible and visual alarms for various tests, including voltage, current, capacitance, diode, hFE, NCV, and live wire testing.
• A capacitor charging indicator to prevent incorrect readings.
• An ergonomic, double-injection molded design that is drop-resistant from up to 1 meter.
• Built-in flashlight and auto backlight for ease of use in low-light conditions.
• The device operates on 4 x 1.5V (R03) batteries and features an automatic power-off function, low battery indication, and data hold functionality.

Measurement capabilities include:

• DC voltage: 600mV to 1000V with an accuracy of ±(0.5%+2).
• AC voltage: 6V to 1000V with an accuracy of ±(0.8%+5).
• DC current: 60μA to 20A with an accuracy of ±(0.8%+8).
• AC current: 60mA to 20A with an accuracy of ±(1%+12).
• Resistance: 600Ω to 60MΩ with an accuracy of ±(0.8%+3).
• Capacitance: 6nF to 100mF with an accuracy of ±(2.5%+20).
• Frequency: 9.999Hz to 9.999MHz with an accuracy of ±(0.1%+4).
• Duty cycle: 0.1% to 99.9% with an accuracy of ±(2%+5).
• Temperature: -40°C to 1000°C (±2%+4) or -40°F to 1832°F (±2%+8).

Additional functions include diode and continuity testing, transistor hFE testing, dual-range NCV, and a live wire test. The multimeter is compact with dimensions of 189mm x 89mm x 53mm and weighs 345g.

The UT89X is a versatile, durable, and user-friendly multimeter, ideal for professionals in various industries, offering a one-year warranty for peace of mind.
